Method of Usage--Portable Power Station P600 600W
For the use of 600W portable power supply, the following is a detailed guide:

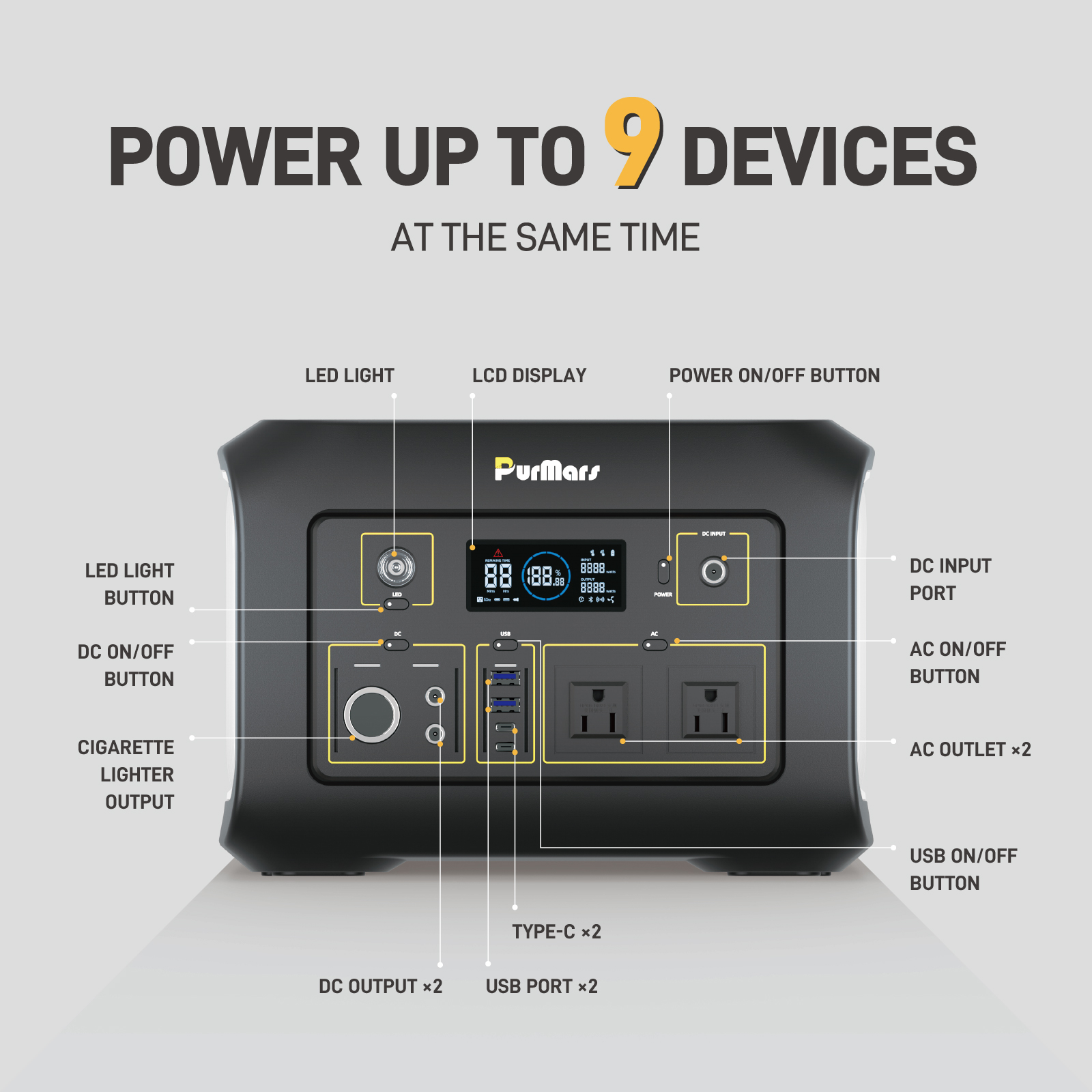

1. Display Indicator
①
High Temperature Indicator
When B600&B1200 are in high temperature, the high temperature indicator will be lit. Please cool down the B600&B1200 before using.
②
Low Temperature Indicator
When B600&B1200 are in low temperature, the low temperature indicator will be lit. Please use it after the temperature is restored to above 5℃.
③
Battery Temperature Indicator
When the battery temperature is abnormal, the battery temperature indicator will be lit.
④
Remaining Charge/Discharge Time
⑤
AC Port Indicator
The AC indicator icon will appear on the LCD display when the AC power button is turned on.
⑥
USB-A Port Indicator
The USB-A output icon will appear on the LCD display when the USB-A port is turned on.
⑦
USB-C Port Indicator
The USB-C output icon will appear on the LCD display when the USB-C port is turned on.
⑧
DC&Car Charging Port Indicator
The Car Charging Output icon will appear on the LCD display when the DC&Car Charging Output is turned on.
⑨
Battery Percentage
⑩
Current Input Power
Shows the current input power of B600&B1200 in watts.
⑪
Current Output Power
Shows the current output power of B600&B1200 in watts. When all ports are closed, the current output power should be 0W.
⑫
Bluetooth Indicator
A. To be matched：The icon flashes frequently;
B. Matching：The icon flashes;
C. Matched：The icon is lit.
⑬
Wireless Charging Indicator
The icon is off when no charging, the icon is on when charging.
⑭
Fan Indicator
The icon is on when the fan is running, the icon is off when the fan stops running.
2. Button Operation
(1) Long press the power button to power on the product, the
LCD display will be lit and the main power indicator icon will appear on the LCD display. If do not turn on the output, this product will be turned off automatically 1 minute later. When the product is started, short press AC power button, DC power button or USB power button to turn on output(B600:Press USB power button to enable the wireless charging function). Long press to turn off.
(2) Long press LED power button to turn on/off the LED light. Short press to switch modes.(lighting mode -- alarm mode -- SOS mode -- lighting mode, cycle in order.) When the LED light is turned on, it needs to long press the power button to turn off as it will not turn off automatically.
(3) APP Operation Guide（B1200）:
① Download the APP. China: download “YILIANWANWU” APP. America: download “Landbook” APP. Other regions: download “wonderfree” APP.
② Turn on the bluetooth of the phone and connect the phone to WIFI, then turn on the APP to search and add the B1200 power station, click “⊕” to add. (Note: Connecting the power station for the first time needs to connect working WIFI to the app.)
③ After connecting successfully, B1200_xxxx will show in the APP. When press the power button to turn on the power station, the APP will display that B1200_xxxx is online, click it to enter the app operation interface.
(4) When the power station is performing AC charging but the AC power button is off, long press the AC power button and DC power button for 2 seconds to switch the frequency and save it. This frequency cannot be switched when the battery is fully charged.
(5) When AC output is turned on, the fan stops after 3s rotation. The AC output will be automatically turned off if no devices loaded for 8 hours. (in the case of other functions are turned off).
(6) If AC output are in a short circuit or overload, AC indicator will flash and the buzzer (once per second) will sound and stop 1 minute later. (In the case of other functions are turned off, the power station will be turned off automatically.) AC supports charging and discharging at the same time. When the battery level is higher than 95%, charging will stop. When the battery level is lower than 90%, charging will start.
(7) When the battery capacity drains to 10%, recharging indicator icon will flash on the LCD display in 0.5Hz and the buzzer will alarm synchronously, short press the AC power button or recharge to stop alarming. When the battery capacity drains to 5%, recharging indicator icon will flash on the LCD display in 1Hz and the buzzer will alarm synchronously, short press the AC power button or recharge to stop alarming. When the battery capacity drains to 0%, the output will be turned off and the buzzer will sound 9 times ( once per second), short pressing AC power button and recharging can stop alarming during beeping.
(8) The USB output and DC output will be automatically turned off if no devices loaded for 5 minutes. The AC output will be automatically turned off if no devices loaded for 8 hours.
3. Recharging Ways
Note: Please fully charge the new product before using it for the first time. If this product is stored for a long time (3 months to 6 months)in the case of battery depletion, its function will deteriorate, even making it impossible to charge. It is suggested to regularly check the remaining battery and charge it to about 60%-80% if it needs to be stored for a long time.
AC charging
Connecting the equipped AC charging cable to the DC input port of the power station for charging. The charging battery level and charging input power will appear on the LCD display.
Car charging
Please charging the power station after the car’s ignition is turned on, so as not to cause any damages to car battery, for example, unable to start the car due to power loss. And please make sure car charging port and the cigarette lighter of the car charger cable are reliably connected.Our company is not liable for any damages due to the failure to comply with the user manual.
Solar Panel charging
Users can recharge the power station by connecting one or two
solar panels as shown in follow pictures.
4. Warnings and Precautions
Before using this product, please comply with the basic
specifications, including:
A. Please read all instructions carefully before using.
B. To reduce the risk of injury, close monitoring is required when using this product near children.
C. Using accessories recommended or sold by non-specialist product manufacturers may result in the risk of electric shock.
D. Please pull the power plug out of the socket when the power station is not in use.
E. It is forbidden to disassemble the product which may cause unpredictable risks such as fire, explosion or electric shock.
F. It is forbidden to use this product with damaged wires or plugs, or damaged output cables, which may cause risk of electric shock.
G. Please ensure proper ventilation while in charging. Do not
restrict the ventilation of the product in any way.
H. Please place the product in a dry and well ventilated place to avoid rain.Product immersed water may cause risk of electric shock.
I. It is forbidden to place the product near heat sources, which may lead to safety accidents such as fire and explosion.
J. It is forbidden to operate or place the product in high temperature(under direct sunlight or inside the car with high temperature),otherwise it may cause risks such as internal battery overheating, fire, malfunction or battery life shortened.
K. It is recommended to recharge the product every three months to prevent low power when in use.
L. This product has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this product in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
