Zhuhai Jingding Technology Co.,LTD
Battery capacity 2304wh |Lifecycles 2000 times+
2400W AC Pure Sine Wave Inverter (Peak power 4800w)
3 Ways to Recharge (400W Max. solar input | cigarette Lighter charging l AC Charging
7 Outputs for Charging Multiple Devices at once | On-Grid | Balcony Energy Storage
Easy to Carry | Fast Charging
8 PROTECTIONS | Over Load / Over Current / short Circuit High Temperature RoHs Certificate / Low Voltage / Fireproof
Product model:

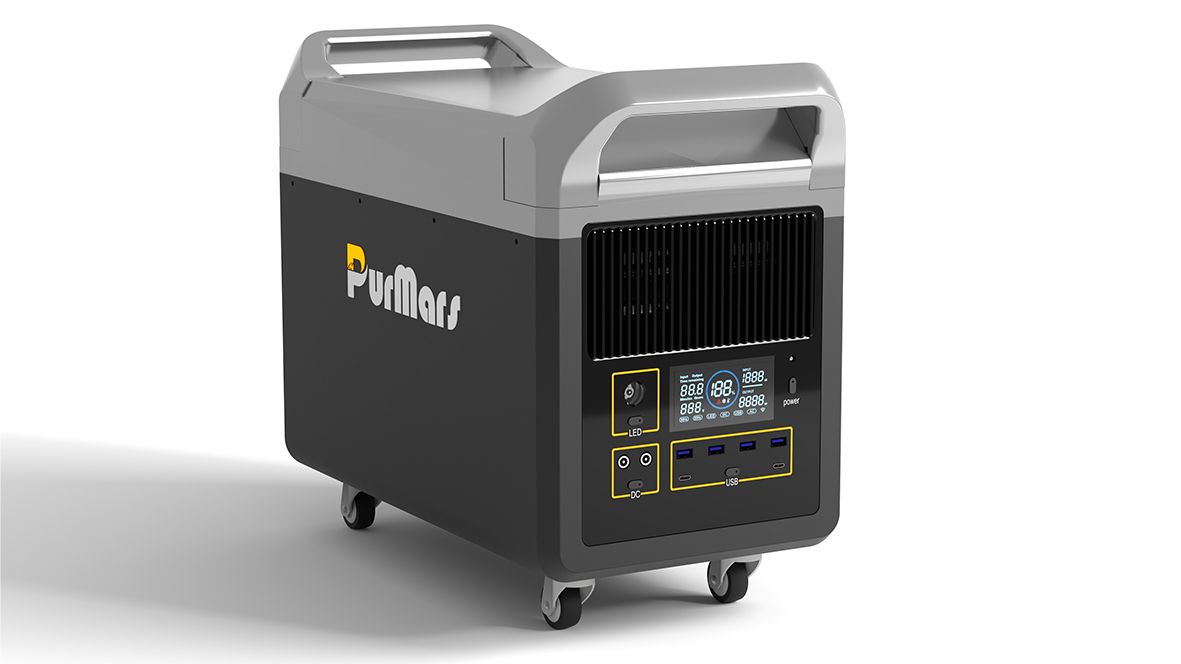

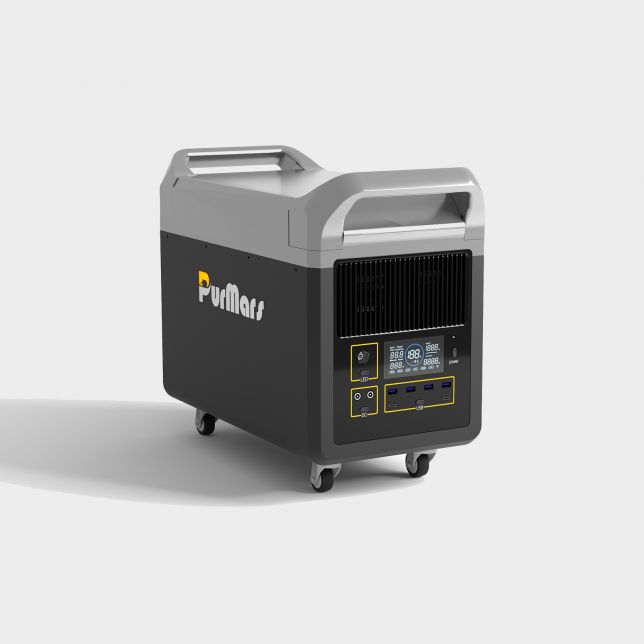

M2400 | Solar panel 400W, Home solar generator
1 year Free Warranty
Lifetime Customer Support
Product usage method
Related Products
Product parameters
| CERTIFICATE | CE ROHS UL FCC UN38.3 MSDS PSE | |
| BATTERY PARAMETERS | Capacity | 51.2V,45Ah(2304Wh) |
| Cell type | LiFePO4 | |
| Lifecycles | 2000 times+ | |
| BMS Functions | High temperature protection, Low temperature protection, Over discharging protection, Over charging protection, Overload protection, Short circuit protection, Over current protection | |
| OUTPUT PARAMETERS | AC Output | 2400W, Peak power 4800W / the pure Sine Wave |
| USB A1/2/3/4 Output | QC3.0 18W(5V/3A,9V/2A,12V/1.5A) | |
| Cigarette Lighter Output | 12VDC 10A | |
| Nominal Output Voltage | A:100.0Vac-120.0Vac/E:210.0Vac-240.0Vac | |
| USB-C1/C2 | PD100W(5V/3A,9V/3A,12V/3A,15V/3A,20V/5A) | |
| DC1/2 | 12VDC 8A (total max.96W) | |
| On-grid | Support | |
| UPS | Support | |
| APP | Support | |
| INPUT PARAMETERS | PV charging | 10-80Vdc 22A 800W (Max) |
| Cigarette Lighter charging | 12VDC 10A | |
| AC charging | 110V: 100-130 Vac 1200w(Max)220V: 210-240 Vac 1200w(Max) | |
| TEMPERATURE PARAMETERS | Usage environment temperature | -10℃~45℃ |
| Discharging environment temperature | -20℃~60℃ | |
| Charging environment temperature | 0℃~45℃ | |
| TRANSPORTATION PARAMETERS | Net Weight | 30.8KG |
| Product Dimension | 550x270x430(mm,LxWxH) | |
| Box Dimension | 630x350x620 (mm,LxWxH) | |
| U/VOL.(m*) | 0.11 | |
| Delivery Cycle (Days) | 60 | |
| 20GP(24-26m’) Loaded Weight 18t | 260pcs | |
| 40GP (55m²) Loaded Weight 22t | 500pcs | |
| 40HQ (68m") Loaded Weight 29t | 618pcs | |
